Burntbite Engine

Personal Project

Data-Oriented ECS Architecture
Data-Driven XML Instantiation

A lightweight Entity Component System (ECS) game engine built entirely from scratch in C++. Designed to prioritize data locality, strict decoupling of state and behavior, and data-driven entity instantiation.

C++ PugiXML
Burntbite Engine Gameplay Screenshot
View Source Code
Download PDF

Engine Architecture

Type-Indexed Storage

View Implementation on GitHub

To create a truly decoupled ECS, the core registry must be able to hold any Plain Old Data (POD) struct without requiring hardcoded lists. I implemented a polymorphic hash-map storage system driven by runtime type information.

  • Type Erasure pattern: The core ECS class utilizes std::type_index to map component types to an abstract IStorage interface, allowing the engine to scale dynamically.
  • Direct Mapping: Under the hood, StorageImpl<C> maintains an std::unordered_map<Entity, C>, ensuring fast lookup times by mapping the unique entity ID directly to its component data.

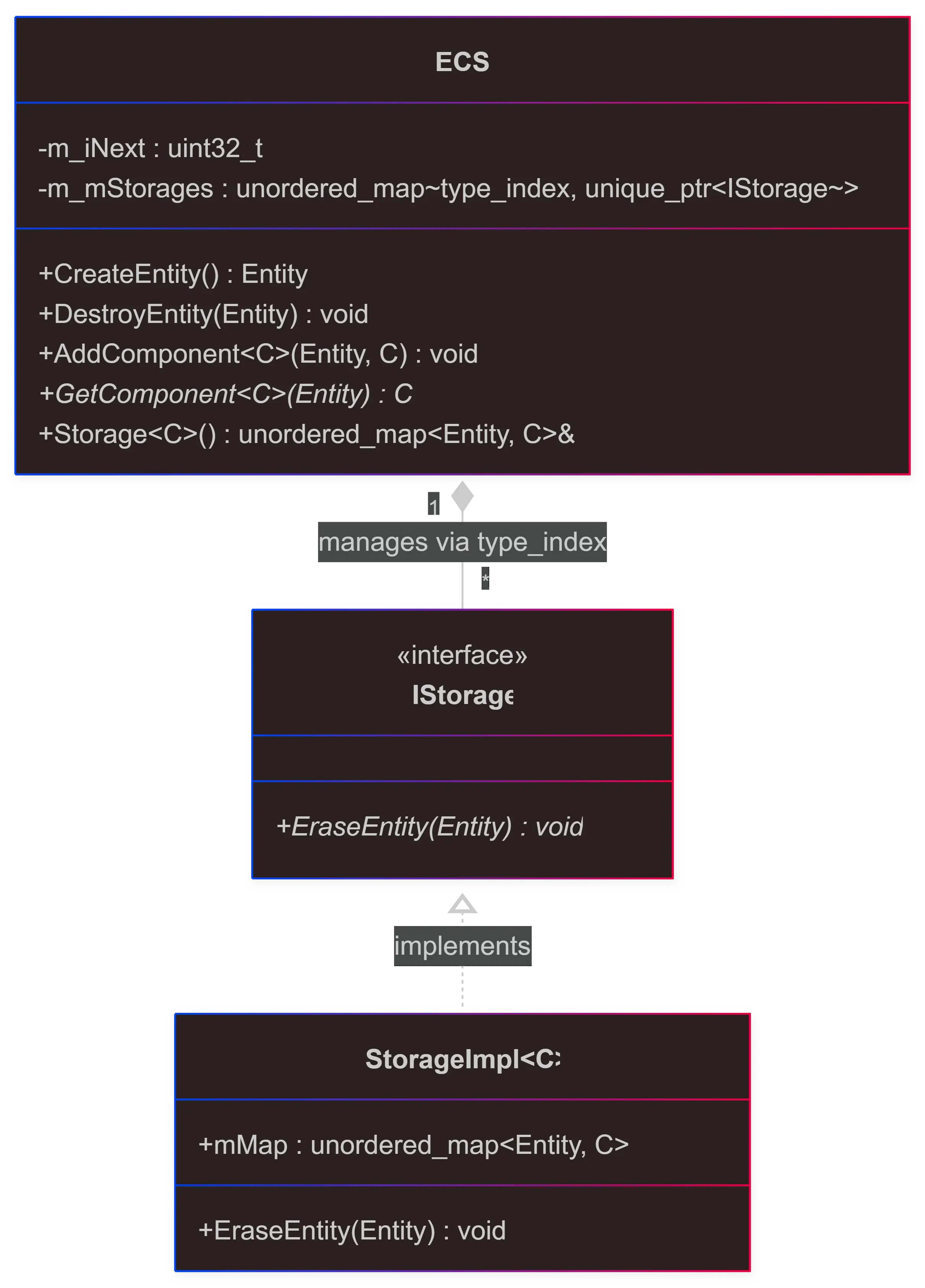

UML Diagram of ECS Storage Architecture
ECS.h
struct IStorage {
    virtual ~IStorage() = default;
    virtual void EraseEntity(Entity e) = 0;
};

template<typename C>
struct StorageImpl : IStorage {
    std::unordered_map<Entity, C> mMap;
    void EraseEntity(Entity e) override { mMap.erase(e); }
};

Data-Driven Instantiation via XML

View Implementation on GitHub

Hardcoding component data into C++ ruins iteration times. To solve this, I integrated PugiXML to act as a factory, allowing entities to be constructed dynamically from external data files.

  • Dynamic Parsing: The EntityFactory parses nodes like <transform> or <velocity> and translates them into ECS components dynamically during runtime.
  • Robust Fallbacks: If an XML attribute or entire node is missing, the parser safely attaches a default-constructed component to the entity ID, ensuring the engine never crashes from bad data.

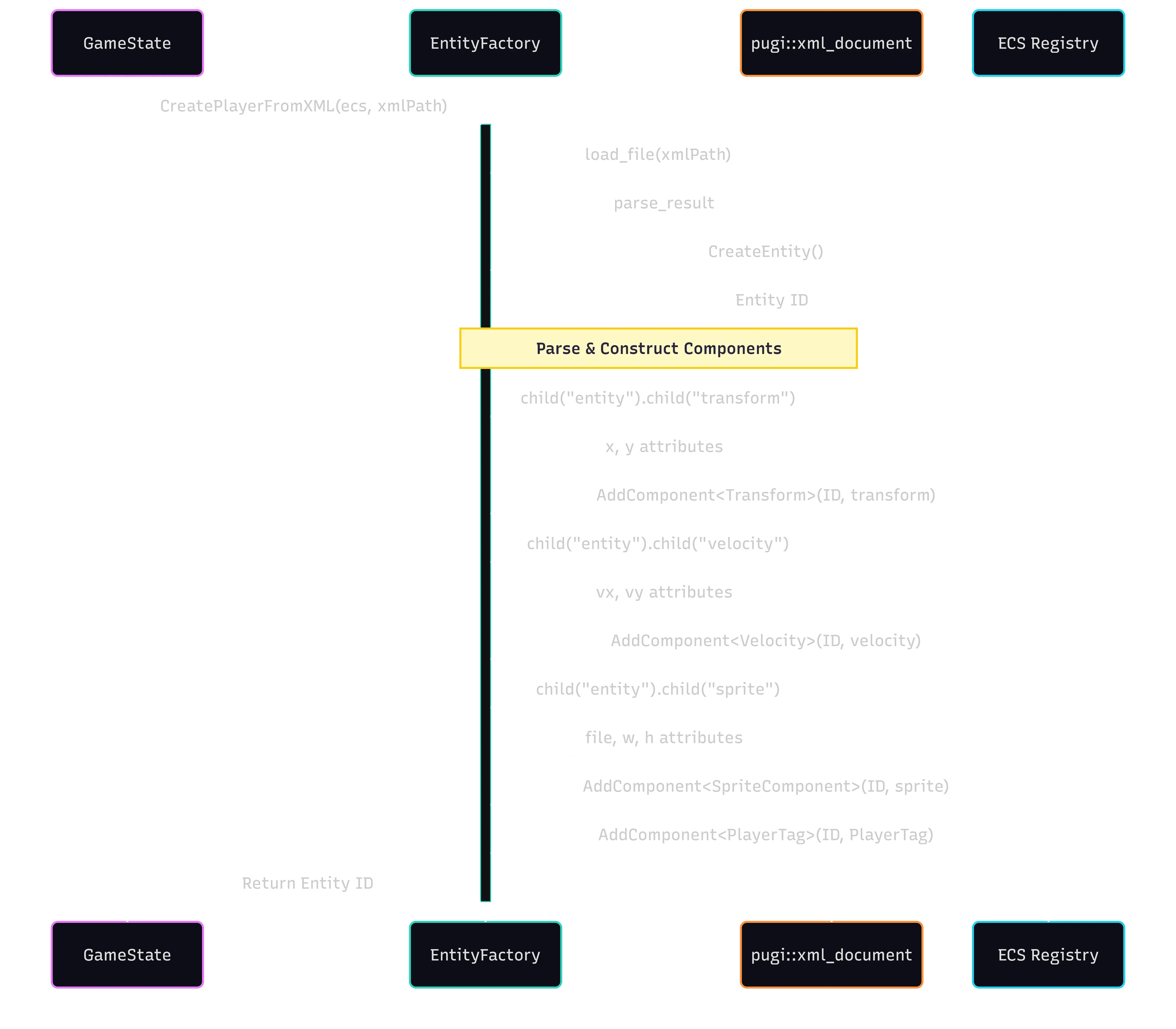

Sequence Diagram of XML Parsing
EntityFactory.cpp
pugi::xml_node oTransformNode = oNode.child("transform");
if (oTransformNode) {
    Transform oTransform;
    oTransform.fPosX = oTransformNode.attribute("x").as_float(240.f);
    oTransform.fPosY = oTransformNode.attribute("y").as_float(440.f);

    _rEcs.AddComponent<Transform>(iEntity, oTransform);
}

Overcoming Global State: The Manager Entity

View Implementation on GitHub

A persistent architectural challenge in pure ECS is tracking global state such as high scores or universal spawn timers, which do not logically belong to physical actors.

  • Headless Architecture: The GameState creates a "Manager Entity" during initialization. This is a headless entity ID that exclusively holds SpawnTimer and Score components.
  • Aggressive Memory Sweeping: When the player dies, the engine must reset the board. ResetForNewGame() aggressively iterates through component maps, systematically erasing any entity ID that doesn't match the Manager ID, cleaning memory while retaining global rules.
GameState.cpp
auto& rTransforms = _rEcs.Storage<Transform>();
std::vector<Entity> lTransformsToRemove;

// Collect all physical entities except the global manager
for (auto& rKeyValue : rTransforms) {
    if (rKeyValue.first != m_iManager) {
        lTransformsToRemove.push_back(rKeyValue.first);
    }
}

// Aggressively clear memory for the board reset
for (Entity iEntity : lTransformsToRemove) {
    rTransforms.erase(iEntity);
}

Polymorphic System Iteration

View Implementation on GitHub

Behavior in Burntbite is driven entirely by Systems. To maintain a clean game loop in main(), all logic managers inherit from a central ISystem interface.

  • Data-Driven Execution: Systems operate only on the entities that possess the specific components they require. The core loop executes their Update() functions polymorphically.
  • Tag Querying: The MovementSystem directly applies kinematic calculations frame-by-frame, querying empty structs like EnemyTag to selectively apply environmental forces like gravity.
Systems.cpp
void MovementSystem::Update(ECS& _rEcs, float _fDeltaTime) {
    auto& rVelocities = _rEcs.Storage<Velocity>();
    auto& rTransforms = _rEcs.Storage<Transform>();

    for (auto& rKeyValue : rVelocities) {
        Entity iEntity = rKeyValue.first;
        auto oIterator = rTransforms.find(iEntity);
        if (oIterator == rTransforms.end()) continue;

        // Apply gravity for enemies via Tag querying
        if (_rEcs.HasComponent<EnemyTag>(iEntity)) {
            rKeyValue.second.fVelocityY += m_fGravity * _fDeltaTime;
        }

        oIterator->second.fPosX += rKeyValue.second.fVelocityX * _fDeltaTime;
        oIterator->second.fPosY += rKeyValue.second.fVelocityY * _fDeltaTime;
    }
}
