Blast Course 2

Developed at Amiguito Studios

The explosive sequel to Blast Course. A first-person puzzle-platformer centered around the high-speed art of Rocket Jumping.

Unreal Engine 5 C++ & Blueprints FMOD

My Role

Game Programmer

Team Size

20+ Developers

Development

Ongoing

Platform

TBD

Download PDF

Engineering Systems

Polymorphic Projectile Architecture

To ensure high performance and strict predictability in a fast-paced game, I bypassed Unreal Engine's native UProjectileMovementComponent. Instead, I engineered a highly modular, Tick-driven mathematical movement system utilizing SweepSingleByChannel.

  • Component-Agnostic Collisions: Environmental interactions are handled cleanly by detecting "Defuser" surfaces via UMaterialInterface.
  • Polymorphic Extensions: The robust ABaseRocket allows child classes (like Bounce or Remote rockets) to implement complex behaviors, such as vector reflection, simply by overriding the virtual Impact() function.
  • The "Unconscious" Actor: Rockets have zero awareness of the memory pool. They simply execute their lifecycle and broadcast an OnRocketFinished multicast delegate when ready for reclamation.

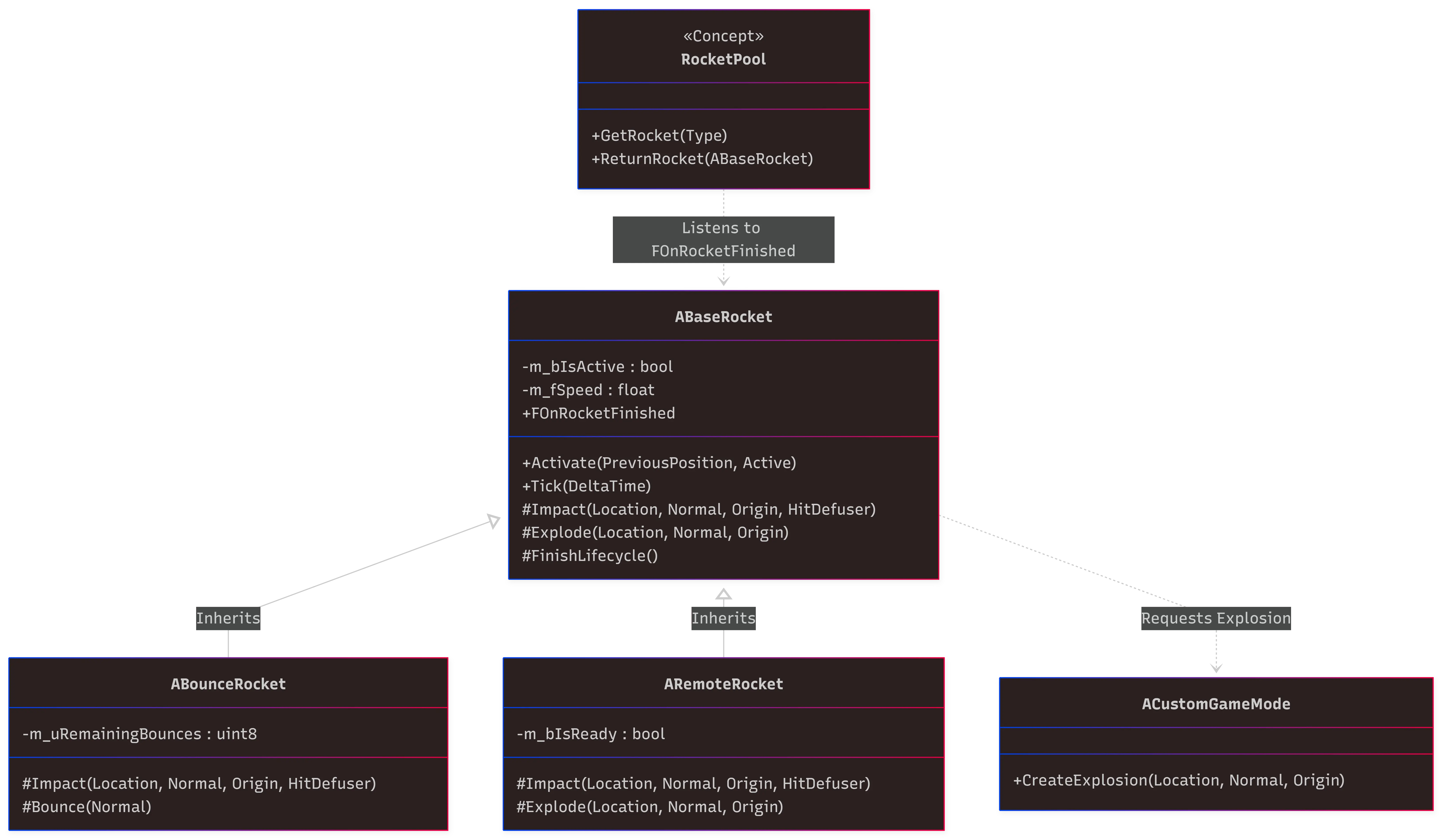

UML Class Diagram of Rocket Architecture

Dual Object Pooling

Spawning hundreds of rockets and explosions at runtime causes massive memory fragmentation and garbage collection spikes. To guarantee a locked frame rate, I built two distinct pooling strategies directly into the ACustomGameMode.

  • O(1) Circular Buffer: Transient, visual-heavy explosions do not require complex lifecycle tracking. They utilize a high-performance modulo-based ring buffer for instant memory access.
  • Active/Free Queues: Rockets utilize stricter management via decoupled TArray queues.
  • Aggressive Recycling Failsafe: If a player exhausts the pre-allocated free pool, the system forces the oldest active rocket to detonate, ensuring the game never hitches due to limit exhaustion or mid-combat memory allocation.

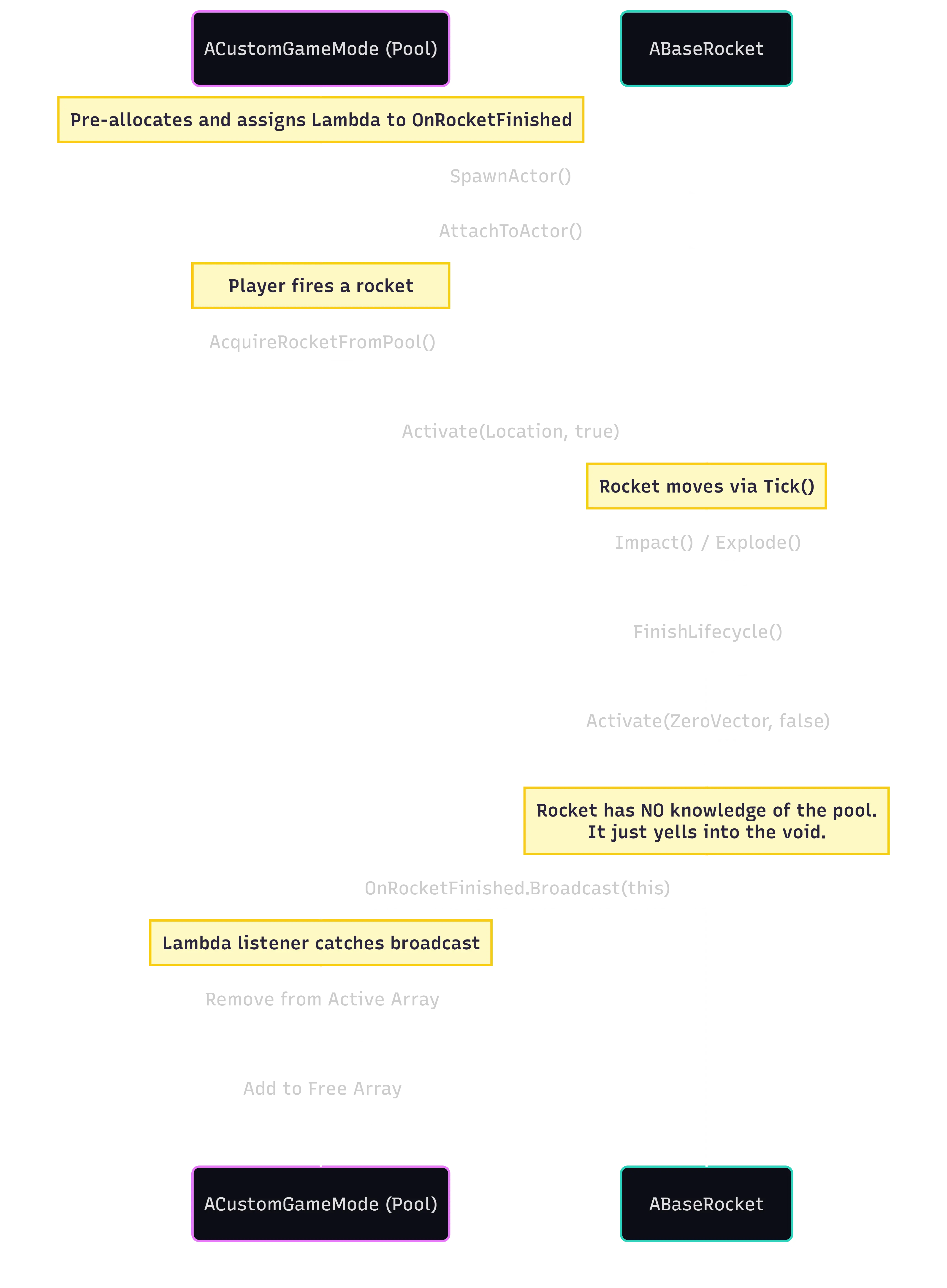

Sequence Diagram of the Decoupled Pooling Lifecycle
ACustomGameMode.cpp
ABaseRocket* ACustomGameMode::AcquireRocketFromPool(ERocketType _eType) {
    FRocketPool& rPool = m_mRocketPools[_eType];
    TObjectPtr<ABaseRocket> pRocket = nullptr;

    if (!rPool.Free.IsEmpty()) pRocket = rPool.Free.Pop();
    else if (rPool.Active.Num() > 0) {
        // Aggressive recycling: force oldest active rocket to explode
        pRocket = rPool.Active[0];
        rPool.Active.RemoveAt(0);
        pRocket->ForceExplosion();
    }

    return pRocket.Get();
}

Extended UMG Architecture

Controlling exact pixel dimensions and aspect ratios from C++ while maintaining a WYSIWYG experience for UI Artists in the Unreal Editor is notoriously difficult. I engineered an extended hierarchy to decouple layout logic from Blueprint constraints.

  • Recursive State Management: The base UCustomUserWidget bypasses native limitations by recursively propagating custom ShowWidget() and HideWidget() states down deeply nested hierarchies.
  • Live Editor Synchronization: I developed UResizableUserWidget to intercept the engine's SynchronizeProperties(). If a UI designer scales a widget in the editor, the C++ calculates the driving axis and dynamically scales the height to preserve the aspect ratio in real-time.
  • Encapsulated Leaf Nodes: Wrappers like UCustomButtonWidget cleanly map custom C++ logic to native ESlateVisibility states.

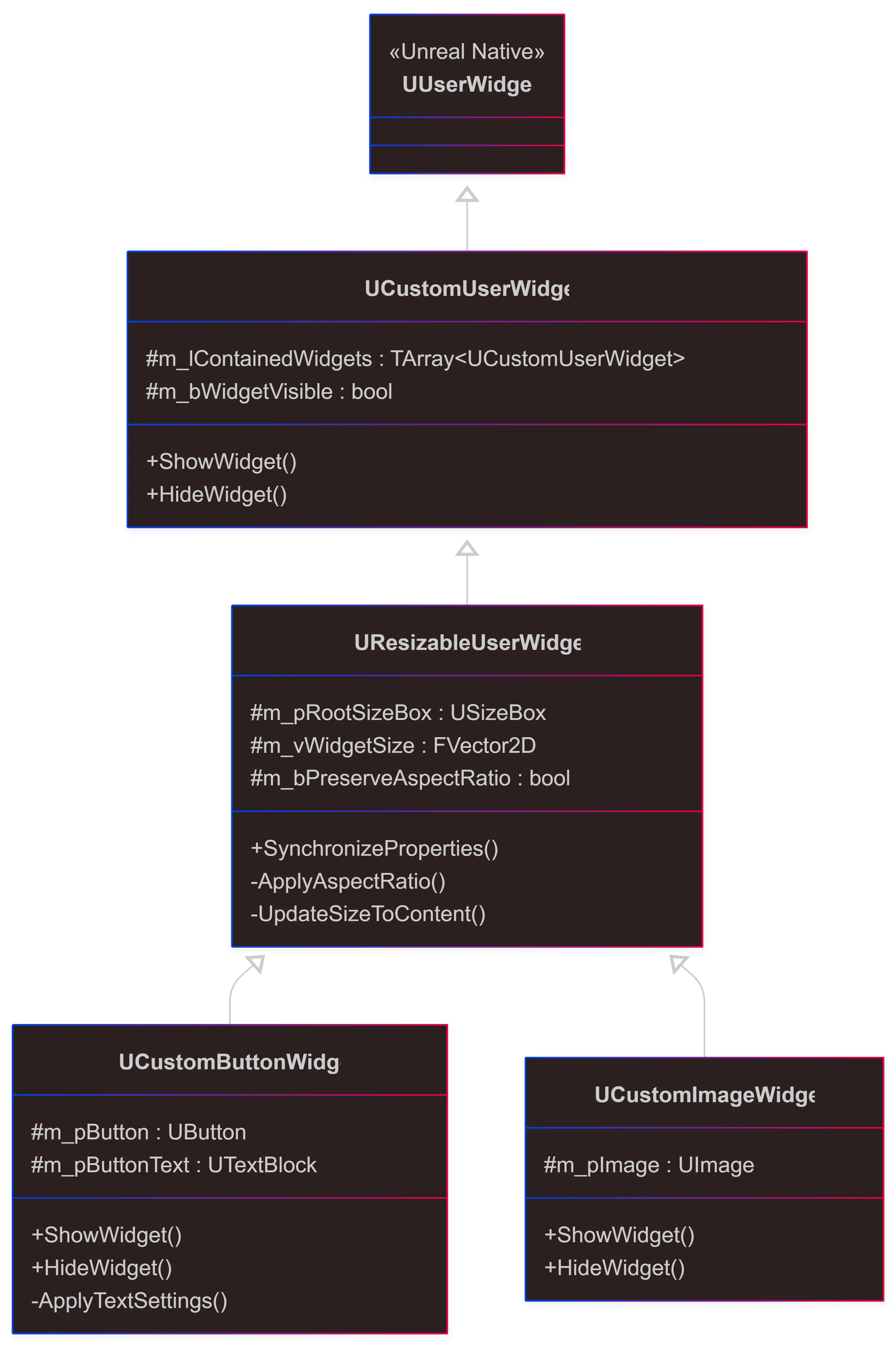

Class Hierarchy of the Custom UMG Framework
UResizableUserWidget.cpp
void UResizableUserWidget::SynchronizeProperties() {
    Super::SynchronizeProperties();

    // Preserve aspect ratio if the flag is enabled in the editor.
    if (m_bPreserveAspectRatio) {
        if (m_fAspectRatio < 0.f && m_vWidgetSize.Y != 0.f) {
            m_fAspectRatio = m_vWidgetSize.X / m_vWidgetSize.Y;
        }

        ApplyAspectRatio();
    }
    else m_fAspectRatio = 0.f;

    SetWidgetSize(m_vWidgetSize);
    UpdateSizeToContent();
    m_vLastSize = m_vWidgetSize;
}
